New Second Hand Bolt Former is coming... 新進二手螺絲成型機通知
Good Day My Dear Business Partners,
There is a new Used Machine arriving Yee Yun today.
The machine is from the famous Taiwanese bolt former brand: CHUN ZU.
It is 4-Die 4-Blow CBF-204S which can make the max bolt / screw up to M20*152L.
大家好! 易坤機械又有新進的二手機械囉!
這次是最熱門的機種: 春日螺絲成型機，四模四沖的CBF-204S機型，
可以製造的最大螺絲/螺栓規格到M20*152L。

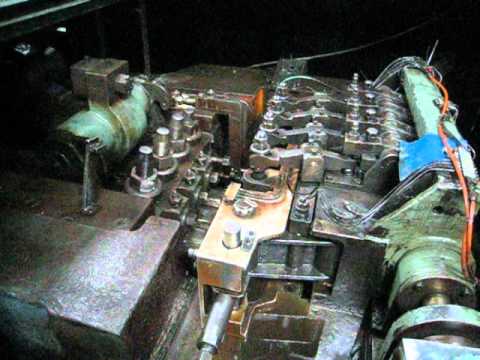

The machine is still running for the production line with very good condition, you can check the running video here:
此二手機械目前還在使用中，運作狀況良好，請看以下影片:
If you are interested in it, please contact Yee Kun Machine ASAP for this hot machine.
如果您對這台熱門的二手機械有興趣，請馬上聯絡易坤機械洽詢，謝謝！
Tel: +886-(0)2-22929837 / 22931092~3
Fax: +886-(0)2-22929858
E-mail: yeekun.liu@gmail.com
Skype: anteia.liu
| C11春日螺絲成型機 CBF-204S | ||
| CHUN ZU Bolt Former | ||
| 規格/配備 | Pattern / Equipment | 4模4沖/ 4-Die 4-Blow |
| 英吋 | Inch | 四分四 |
| 沖程數(段) | No. Of Forging Station | 4 |
| 壓造力 | Forging Load | 350,000 |
| 最大剪斷直徑 | Max. Cut-Off Dia. | ψ23 mm |
| 最大剪斷長度 | Max. Cut-Off Length | 195mm |
| 最高速度 | Max. Out Put | 95 Pcs/Min |
| 沖具通出衝程 | P.K.O. Stroke | 46 mm |
| 打模通出衝程 | K.O. Stroke | 170 mm |
| 主馬達 | Main Motor | 75 HP |
| 剪模直徑 | Cut-Off Die Dia. | ψ75 ×120L mm |
| 沖具直徑 | Pundh Dia. | ψ90 × 215L mm |
| 打模直徑 | Main Die Dia. | ψ125 × 200L mm |
| 螺絲最小與最大尺寸 | Normal Size of Bolt | 12-20 mm |
| 最短最長頸下長度 | Shank Length of Blank | 25-152 mm |
| 長*寬*高 | L*W*H | 730*330*280 cm |
| 重量 | Machine Wt. | 64,000 kgs |
| 製造年份 | Made Year | 1986 Y |
